Polymem Ultrafiltration Membrane Modules

As part of our strategic partnership with Polymem, we are now the North American source for their innovative Ultramem^™ Range of UF modules. These modules are used in a variety of water treatment applications.

The Ultramem^™ range consists of modules working in dead-end, outside/in filtration mode, offering filtration areas from 4.5 to 114 m² (48 to 1,230 ft²).

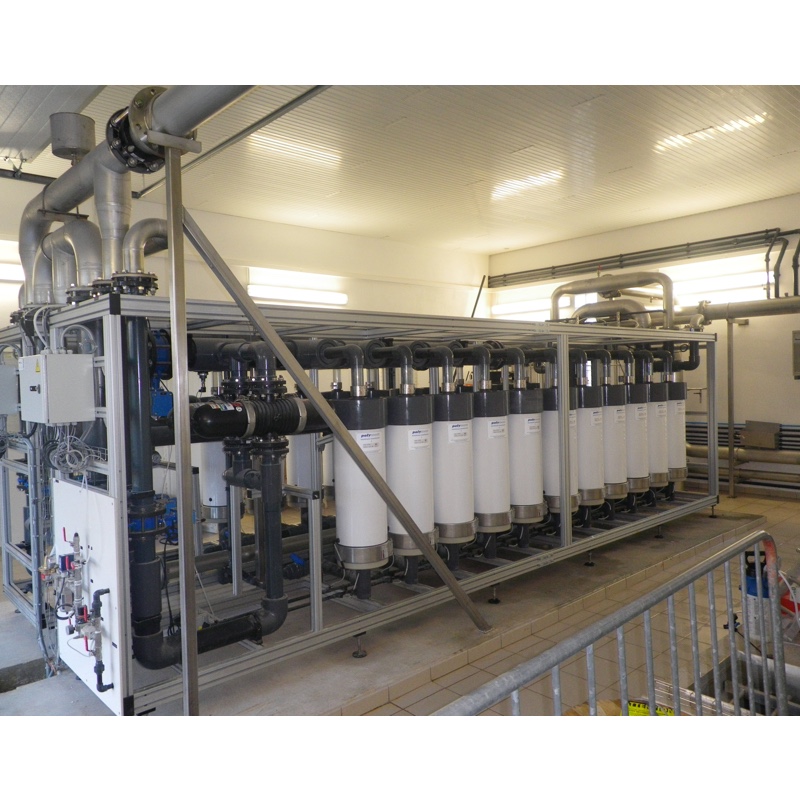

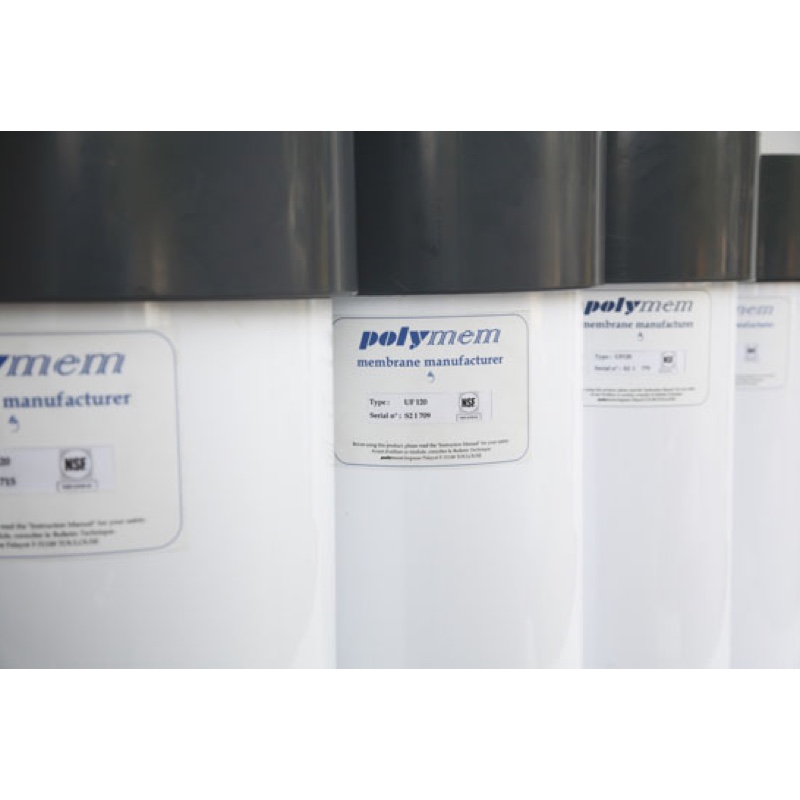

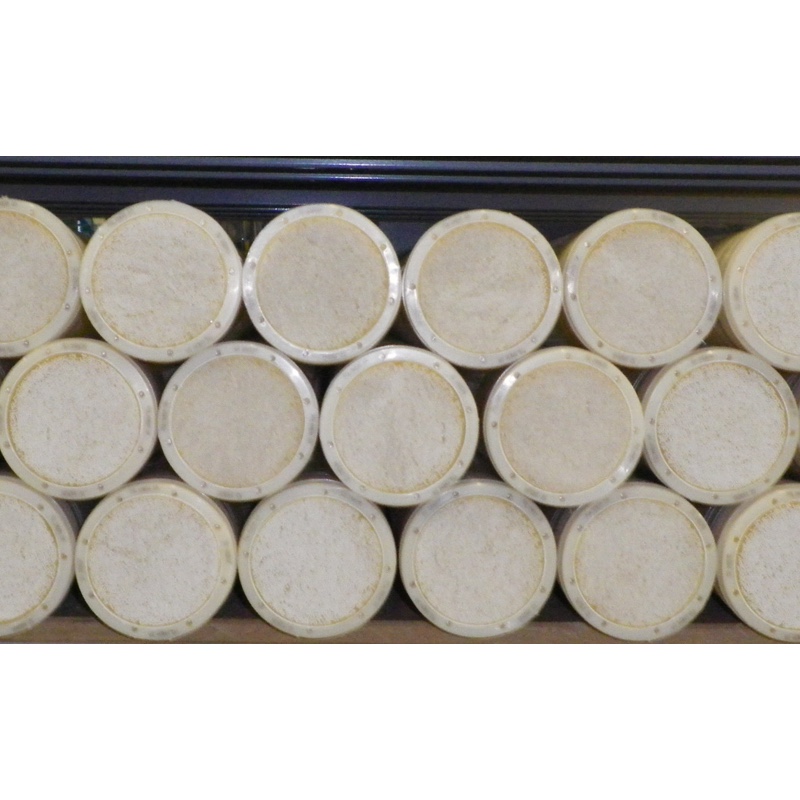

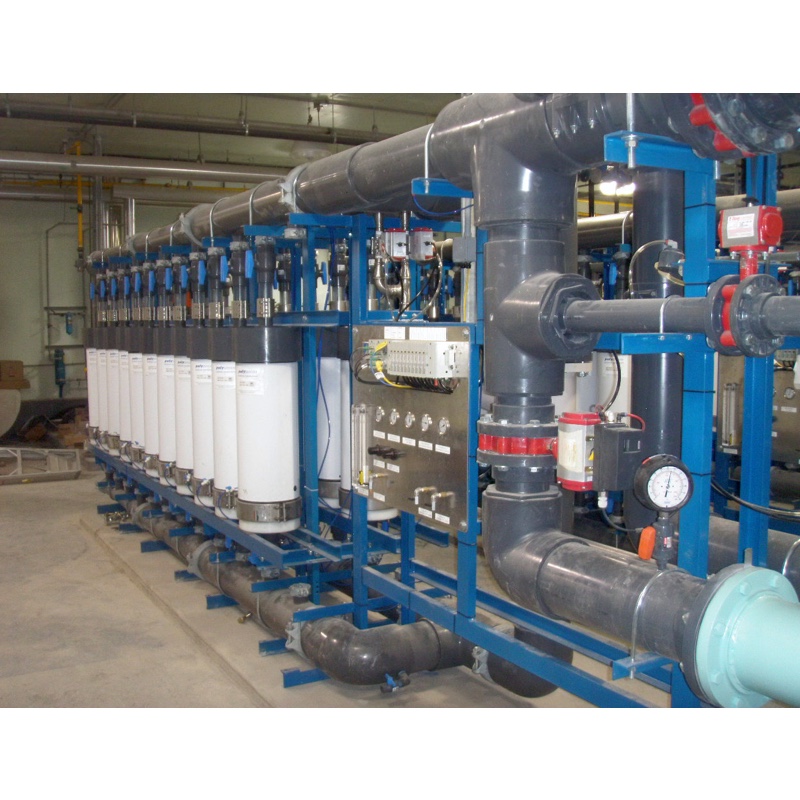

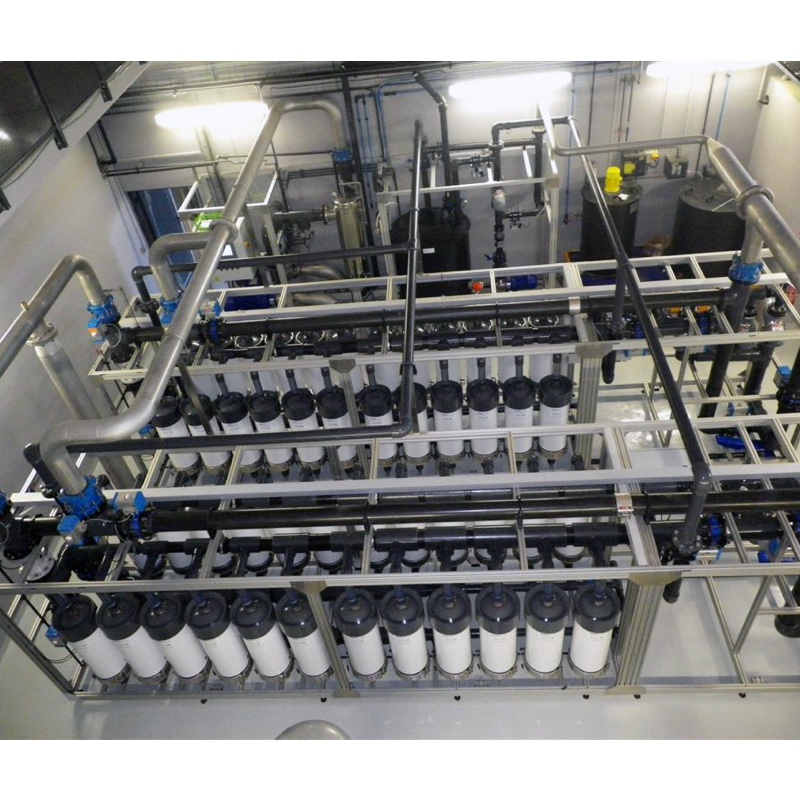

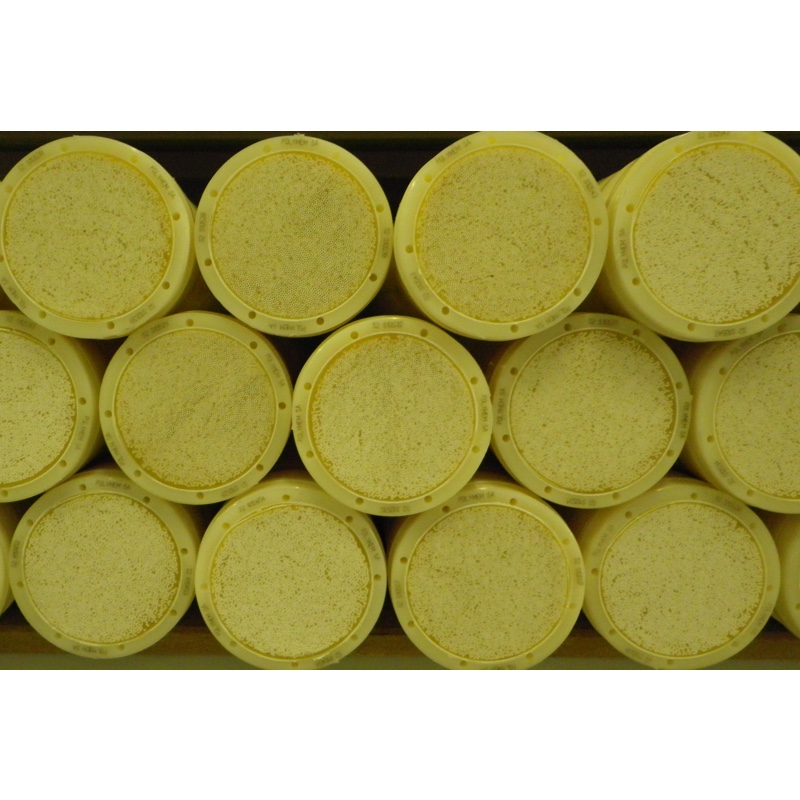

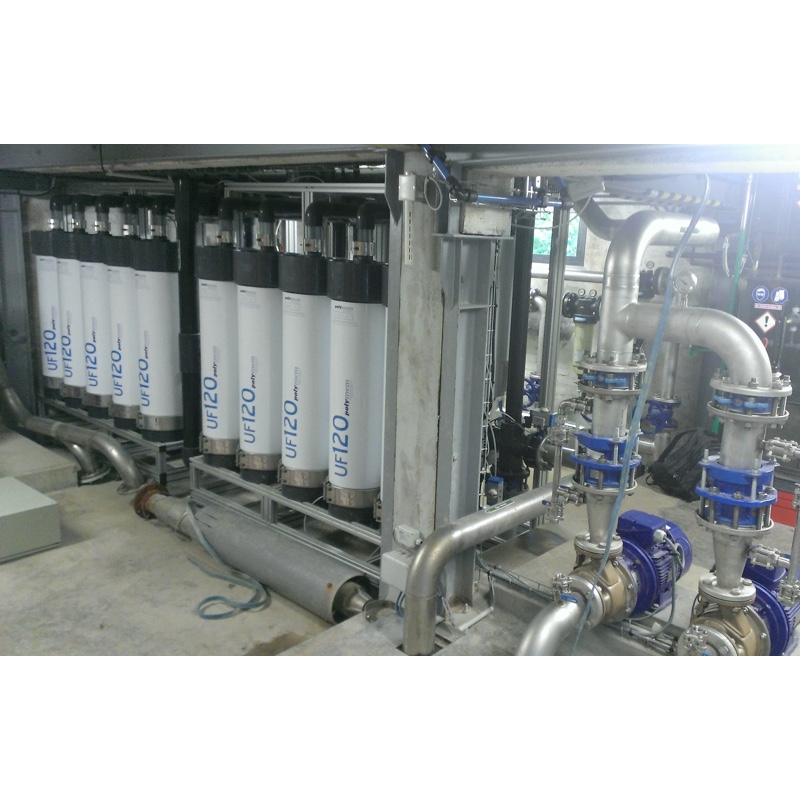

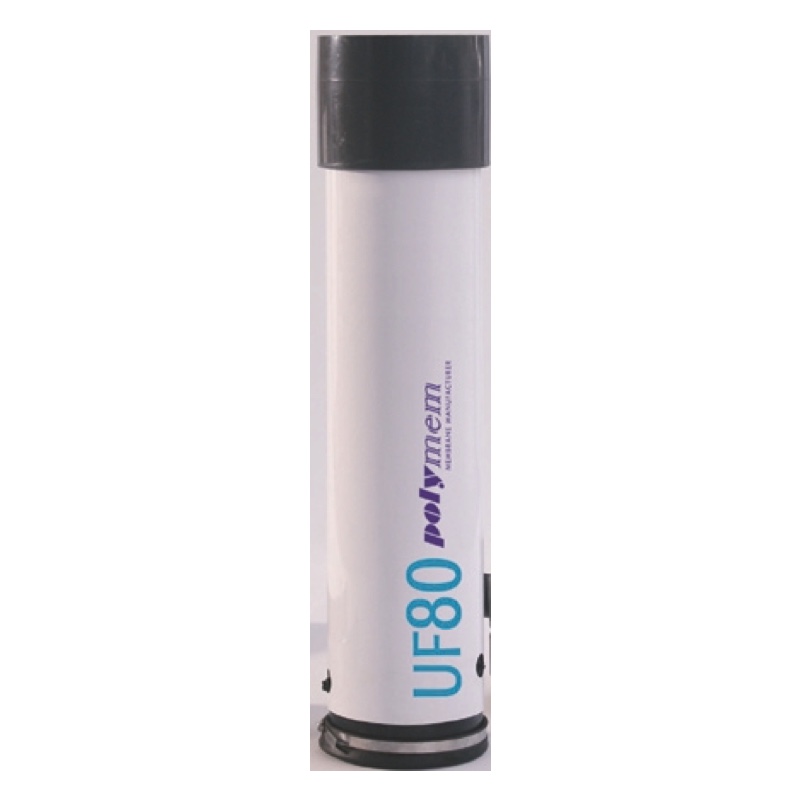

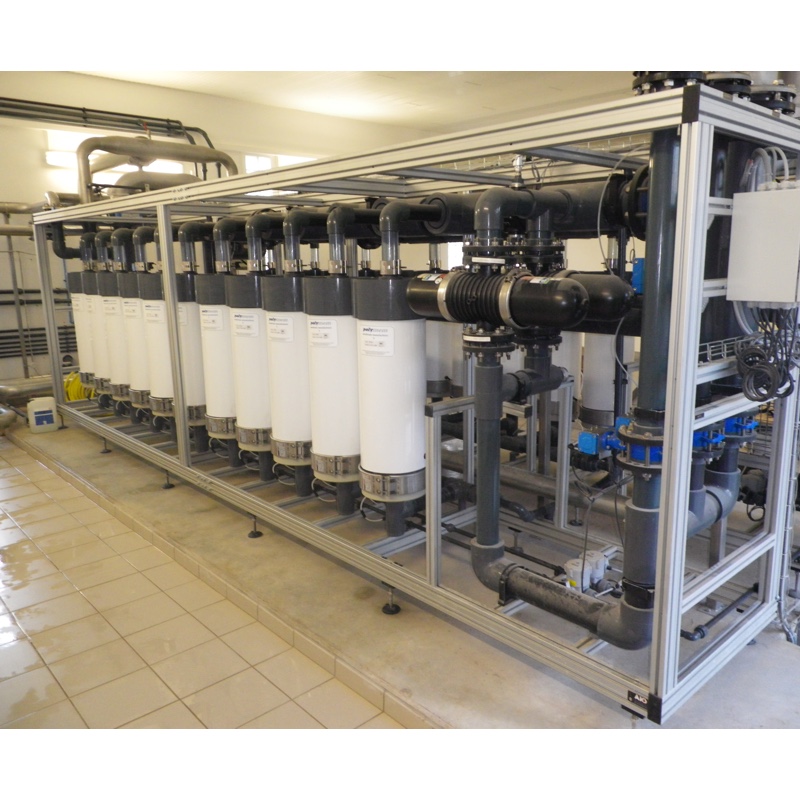

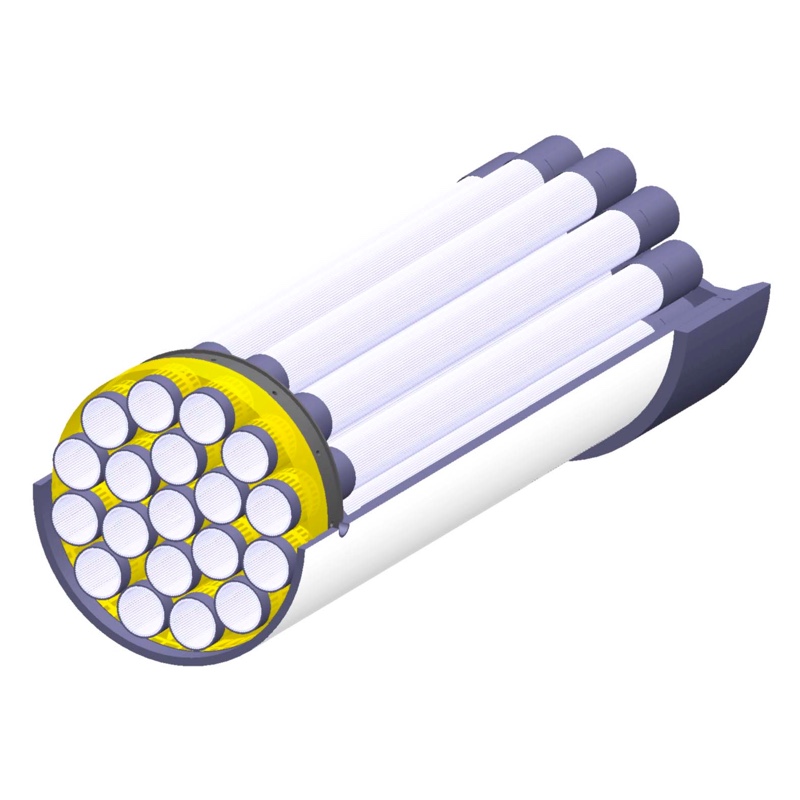

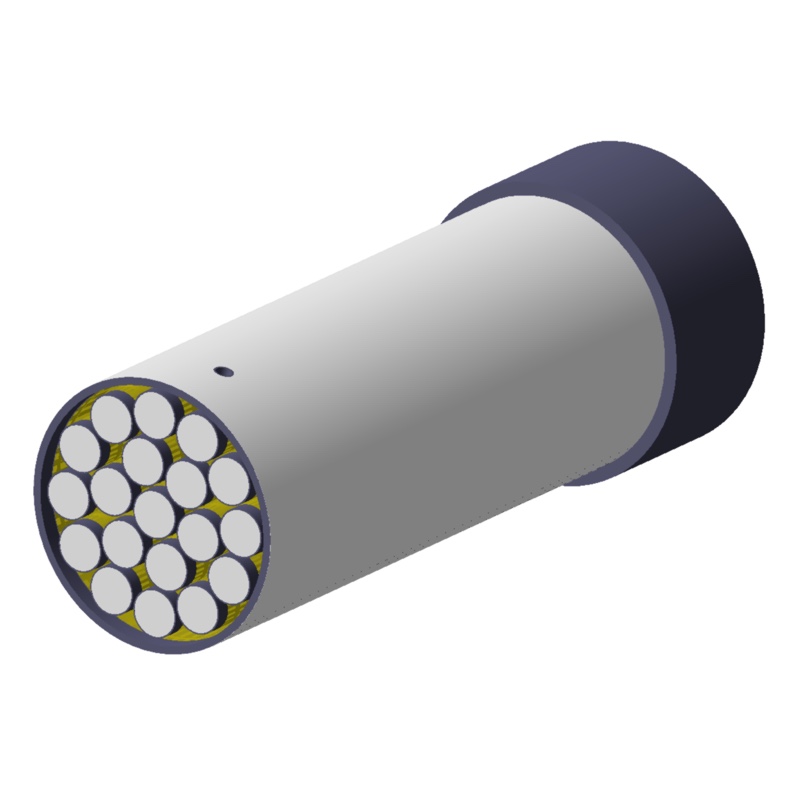

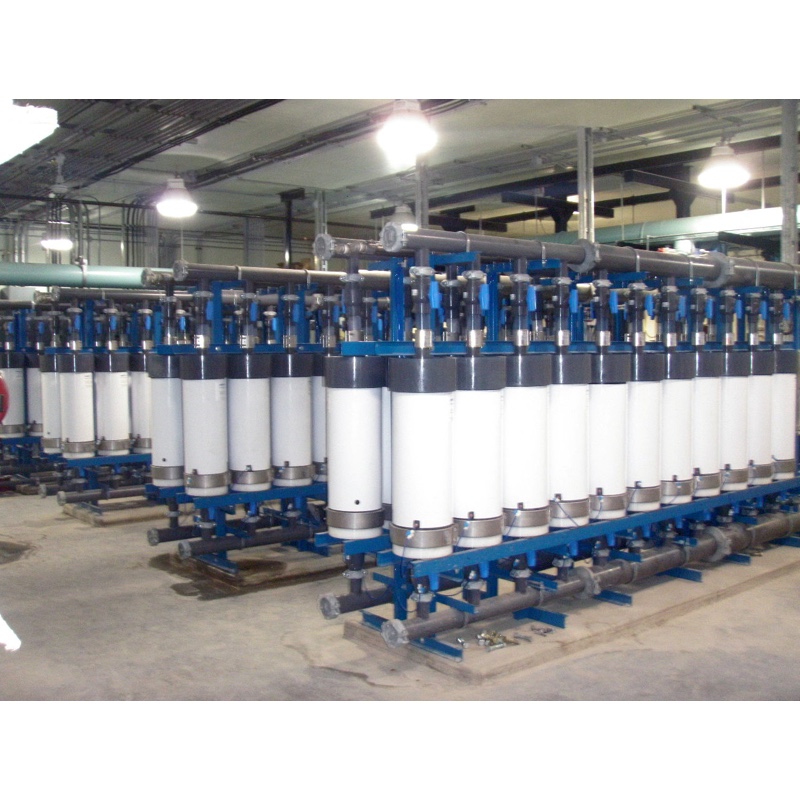

Image Gallery

Typical Applications

Drinking water production (NSF-61 and ACS approved) and process water production
Tertiary wastewater treatment
Pretreatment to desalination or demineralization

Benefits

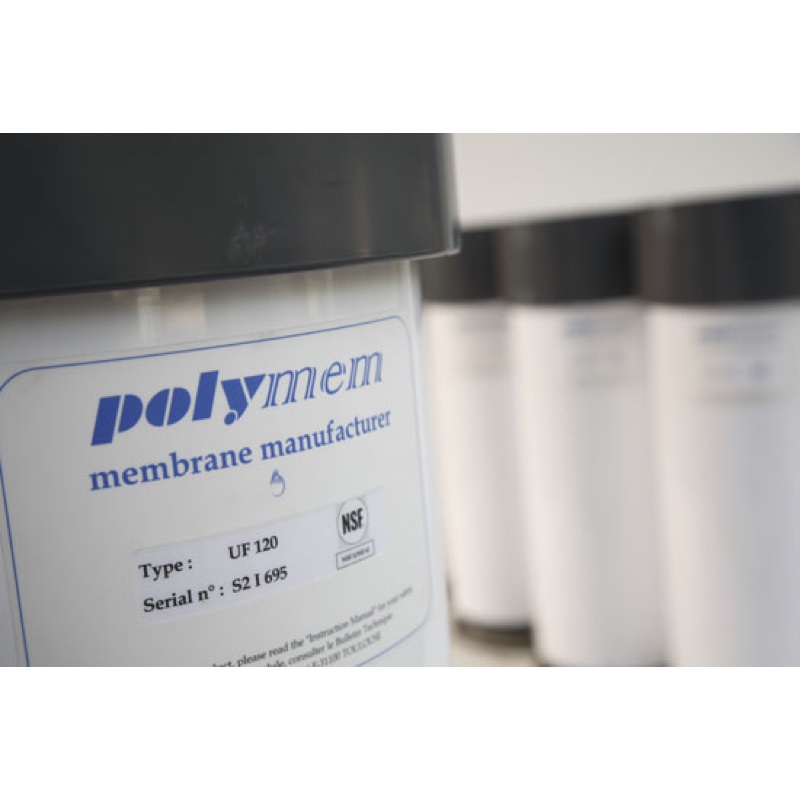

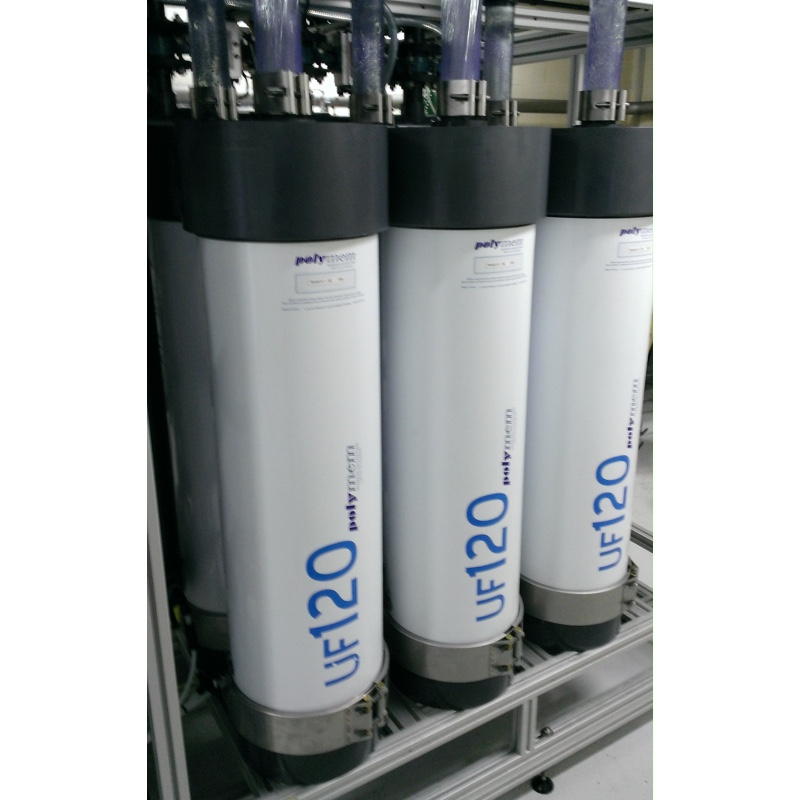

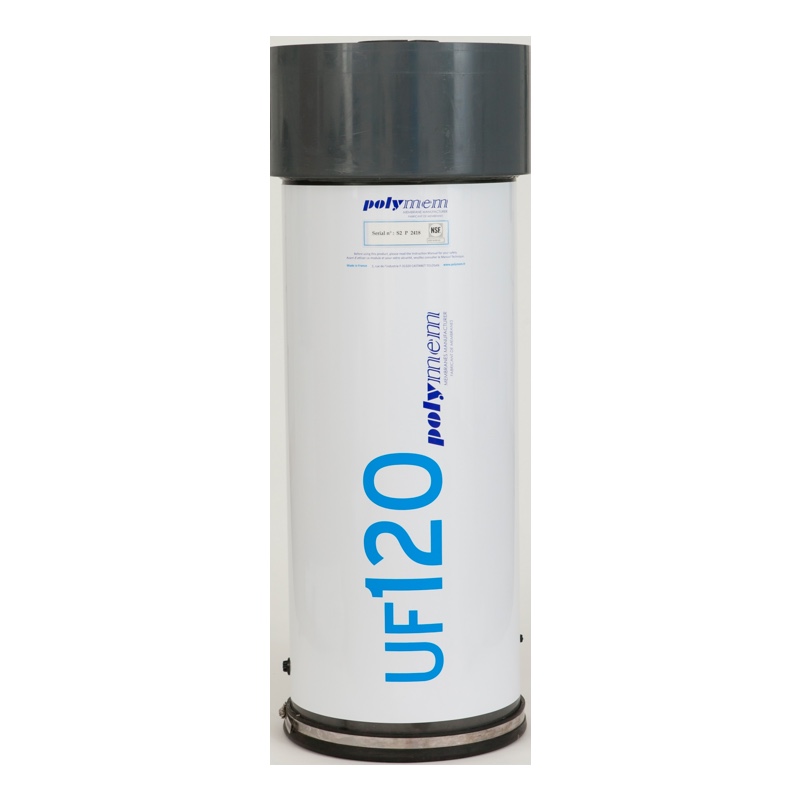

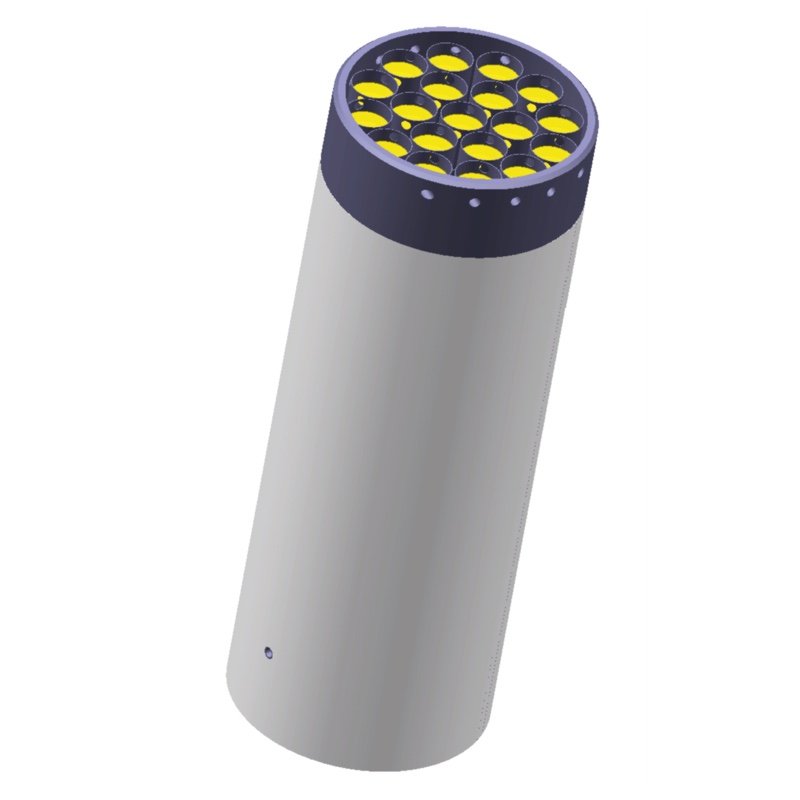

Compact and cost effective modules: up to 114 m² (1,230 ft²) of filtration area for a UF120 module with a 31.5 cm diameter and height of 93 cm
The Ultramem^™ UF line includes modules manufactured with Neophil^™ PVDF and PSF hollow fiber membranes
Efficient and reliable systems with minimal risk of irreversible fiber clogging. Particles accumulated on the external surface of the membrane during filtration cycles are easily removed during backwash cycles
Very good permeate quality in relation to suspended mater, biological contamination and SDI removal

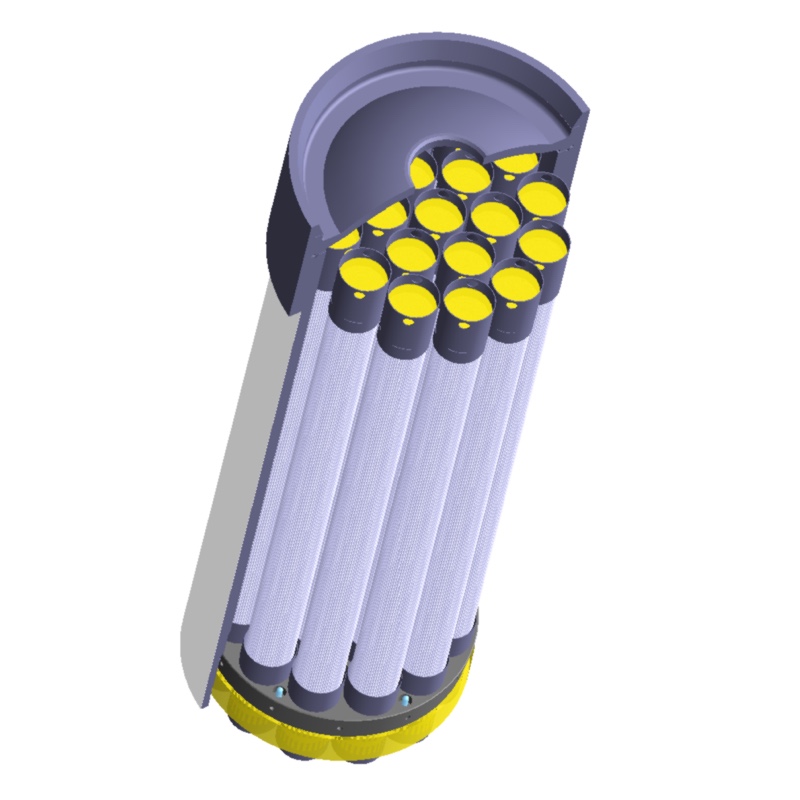

Efficient internal design for easy cleaning with air scour and use of less water
Easy maintenance— short chemical cleaning cycles with standard chemicals, simple and fast fiber defect detection and repair

The Ultramem^™ module range for water treatment has been granted certifications from:

NSF ANSI-61 (American Public Health and Safety)
ACS (French Ministry of Health)
California Department of Health Services (CDHS) ATF Certification
> 6 log removal of Cryptosporidium and Giardia*
> 3 log removal of viruses*
